Pmod IOXP

• I/O port expander that communicates with a host via an I²C interface
• 16-element FIFO for event recording
• 19 configurable I/Os
• Keypad decoding for matrices up to 11×8
• PWM generator
• Open-drain interrupt output
• Dual Programmable logic blocks
• Debouncing on IOs
• Ships with a 10″ 4-pin MTE cable

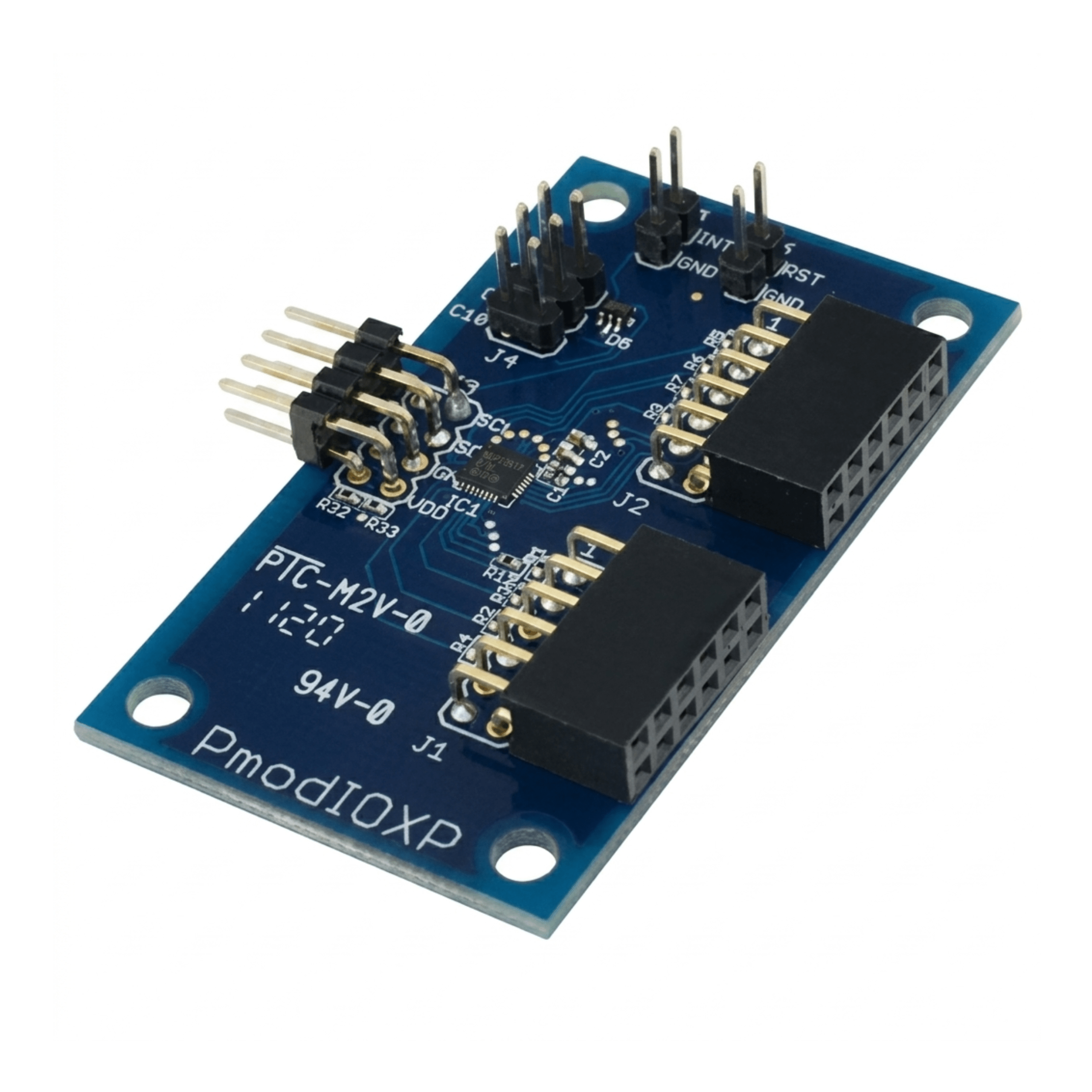

The PmodIOXP is an I/O expansion module powered by the Analog Devices ADP5589. It functions as an I/O port expander and keypad matrix decoder, and uses a standard 8-pin I²C connector allowing it to communicate with a system board via I²C.

All communications with the device must specify a register address and a flag indicating whether the communication is a read or a write. This is followed by the actual data transfer.

Device configuration is performed by writing to control registers within the device. Input and event data is accessed by reading certain device registers.

For datasheets, reference designs, and more, please visit
the Analog Devices wiki.
